INTRODUCTION
- To measure the value of Particulate Matters, Amadda has been designing, supplying and maintaining highest quality PM Analyzer which is used in various industries like textile plants, Rubber Plants, Cement plants , Sugar Mills , Dye and Dye Intermediate , Electroplating Industries, Paper plants and Pharmaceuticals etc.
- Generated data is directly connected to Cloud Gateway to send the data on CPCB/SPCB Server.
- To send the data on Cloud Server, there is a SIM/LAN Based Cloud Gateway which receive the data from the Logic Controller by RS 485 and transmit to the server.
MEASUREMENT TECHNIQUES FOR PARTICULATE MATTER
To monitor the Particulate Matter in the Continuous Emission Monitoring System, Drexel follows the Probe Electrification (Non- Optical) method which comes underthe In-Situ Type Technology (temp. >95 °C)
Probe Electrification (Non-Optical): DC Triboelectric instruments are types of probe electrification devices in which the electrical current charge which is produced by particles interacting with a grounded probe mounted across the stack is measure dand correlated to dust concentration.
Then Electronic signal is converted which is proportional to the dust concentration on the PM Probe.
The length of the probe is depends upon the diameter of Stack. And it covers the 1/3 diameters of the stack at the sample point.

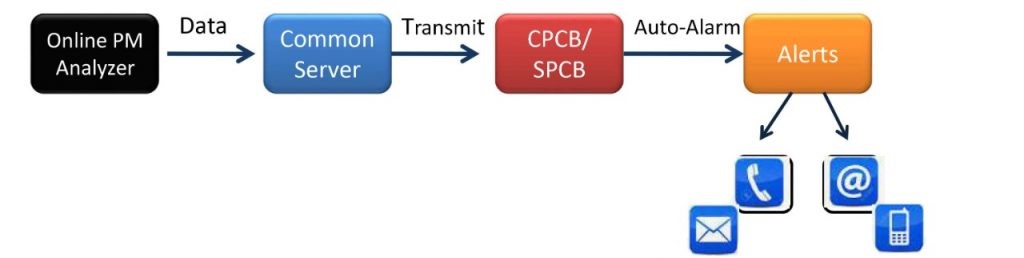

ONLINE SMS ALERTS MECHANISM FOR PM
Online PM Monitoring Equipments are connected to Servers to transmit data through LAN / SIM Card based Cloud Gateway.
Cloud Server collect the analyzed data on every 1 minute frequency and generating files.
Average Frequency of transmitting data to CPCB/SPCB server through Cloud gateway is interval of 15 min.
Auto SMS Alerts have been generated to the dedicated e-mail address & registered mobile numbers .
